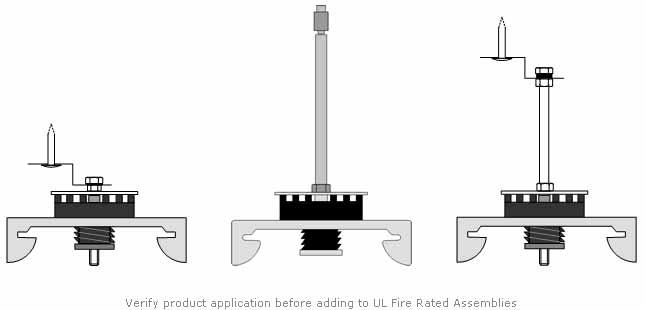

The RSIC-1 ADM™ is intended for use under a concrete slab or steel deck floor system, for a dropped drywall ceiling. The RSIC-1 ADM™ is fastened directly to the underside of the concrete using a 3” or 4” drive pin supplied by PAC International, Inc. A threaded cup washer is then installed to the pin, then the RSIC-1 ADM™ is threaded onto the drive pin, and set to height. The RSIC-1 ADM™ will boost the Impact Isolation Class (IIC) of the assembly by up to 20 IIC pts and 10 STC pts.
RSIC-1 ADM™ clip dimensions
RSIC-1 ADM™ clip dimensions
Downloads:
1: Clip Dimensions RSIC-ADM (PDF) |
